DCMT 11T312E-RM T9415 Carbide Turning Inserts (For General Use / Steel) - Dormer Pramet
DCMT 11T312E-RM T9415
Dormer Pramet Carbide Turning Inserts.

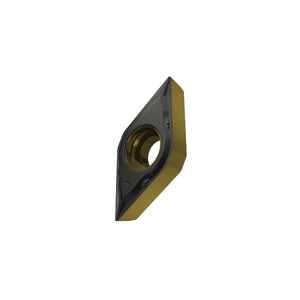

Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 9.525mm, 3.97mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker RM with rounded cutting edges, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for fine to heavy machining of steels
This price is for a box of 10 inserts.
| Insert Style |
DCMT |
| Insert Size |
11T312E |
| Grade |
T9415 |
| Chip Breaker Type |
RM |
| Corner Radius (RE) | 1.2mm |
| Height (IC) |
9.525mm |
| Hole Diameter (D1) | 4.4mm |
| Cutting Edge Length (L) | 11.60mm |
| Insert Thickness (S) | 3.97mm |
| Cutting Edge Material | Carbide |
