DCMT 070202E-FM T7325 Carbide Turning Inserts (For Stainless Steel) - Dormer Pramet

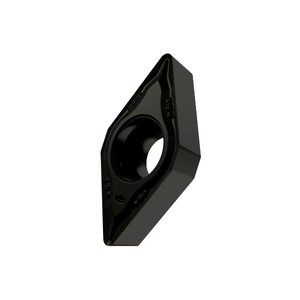

DCMT 070202E-FM T7325
Dormer Pramet Carbide Turning Inserts.
Single-sided positive turning insert, 55° rhomboid with 7° clearance, inscribed circle diameter of 6.35mm, 2.38mm thick, 0.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker FM with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO range M10 -M25, for fine to medium machining of stainless-steels
This price is for a box of 10 inserts.
| Insert Style |
DCMT |
| Insert Size |
070202E |
| Grade |
T7325 |
| Chip Breaker Type |
FM |
| Corner Radius (RE) | 0.2mm |
| Height (IC) |
6.35mm |
| Hole Diameter (D1) | 2.8mm |
| Cutting Edge Length (L) | 7.8mm |
| Insert Thickness (S) | 2.38mm |
| Cutting Edge Material | Carbide |
DCMT 070202E-FM T7325 DCMT 070202E-FM T7325 CARBIDE TURNING INSERTS (FOR STAINLESS STEEL) - DORMER PRAMET
