CNMG 190612E-NM T9325
Dormer Pramet Carbide Turning Inserts.

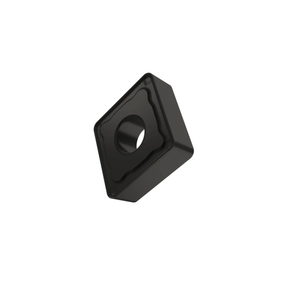

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 19.05mm, 6.35mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NM with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges P15 -P35 and M10 -M30, for fine to heavy machining of steels and stainless-steels
This price is for a box of 10 inserts.
| Insert Style |
CNMG |
| Insert Size |
190612E |
| Grade |
T9325 |
| Chip Breaker Type |
NM |
| Corner Radius (RE) | 1.2mm |
| Height (IC) |
19.05mm |
| Hole Diameter (D1) | 7.94mm |
| Cutting Edge Length (L) | 19.3mm |
| Insert Thickness (S) | 6.35mm |
| Cutting Edge Material | Carbide |
