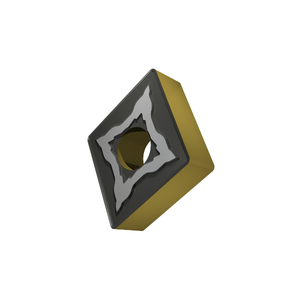

CNMG 160608E-NMR T9415 Carbide Turning Inserts (For General Use / Steel) - Dormer Pramet
CNMG 160608E-NMR T9415
Dormer Pramet Carbide Turning Inserts.
Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 15.575mm, 6.35mm thick, 0.8mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NMR with rounded cutting edges, in grade T9415, a MT-CVD coated functionally graded WC-Co carbide within ISO range P05 -P30, for fine to heavy machining of steels
This price is for a box of 10 inserts.
| Insert Style |
CNMG |
| Insert Size |
160608E |
| Grade |
T9415 |
| Chip Breaker Type |
NMR |
| Corner Radius (RE) | 0.8mm |
| Height (IC) |
15.88mm |
| Hole Diameter (D1) | 6.35mm |
| Cutting Edge Length (L) | 16.1mm |
| Insert Thickness (S) | 6.35mm |
| Cutting Edge Material | Carbide |
