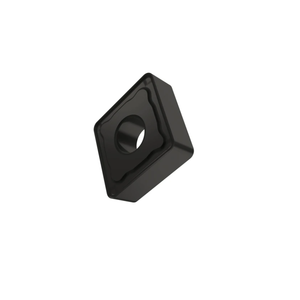

CNMG 120412E-NM T7325 Carbide Turning Inserts (For Stainless Steel) - Dormer Pramet
CNMG 120412E-NM T7325
Dormer Pramet Carbide Turning Inserts.
Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7mm, 4.76mm thick, 1.2mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NM with rounded cutting edges, in grade T7325, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M10 -M25 and S10 -S25, for fine to heavy machining of stainless-steels and super-alloys
This price is for a box of 10 inserts.
| Insert Style |
CNMG |
| Insert Size |
120412E |
| Grade |
T7325 |
| Chip Breaker Type |
NM |
| Corner Radius (RE) | 1.2mm |
| Height (IC) |
12.7mm |
| Hole Diameter (D1) | 5.16mm |
| Cutting Edge Length (L) | 12.9mm |
| Insert Thickness (S) | 4.76mm |
| Cutting Edge Material | Carbide |
