HZ90 0604-50 H7 333TN 5mm Cutting Width HSS Broaching Inserts Single-sided For PHZ...-06 Holders (2x Inserts) - Dormer Pramet
HZ90 0604-50 H7 333TN

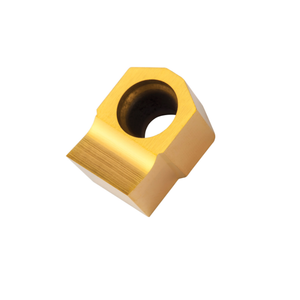

Dormer Pramet HSS Broaching Inserts Single-Sided.
Single ended keyway and slotting insert for broaching a width of 5mm within tolerance class H7, grade 333TN PVD coated HSS within ISO-grade ranges P45-P50 for machining of steel in combination with a PHZ…-06 size broach
This price is for a Pack of 2 inserts.
| Insert Style |
HZ90 |
| Insert Size |
0604-50 H7 |
| Grade |
333TN |
| Diameter (IC) |
6.0mm |
| Insert Height (INSL) | 8.0mm |
| Depth of Cut (APMX) | 3.0mm |
| Cutting Length (S) | 4.66mm |
| Insert Thickness (S1) | 4.76mm |
| Cutting Diameter (CW) | 5.0mm |
| Cutting Edge Material | HSS |
