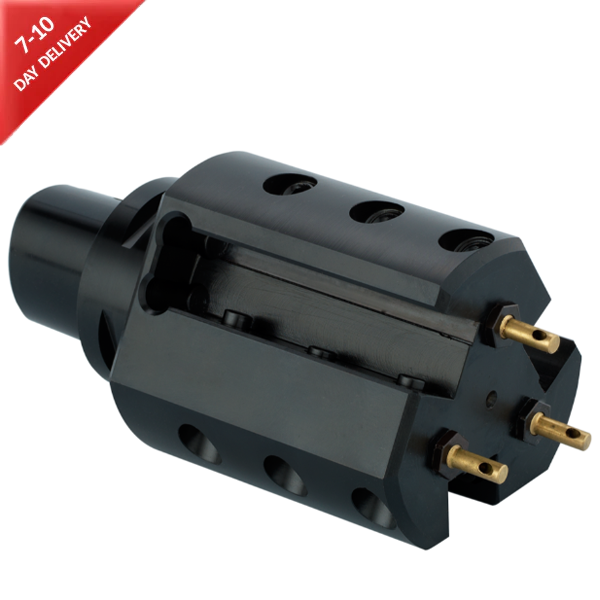

Capto EPS 80 - 32mm Triplex Axial Toolholder Right Hand EPS (ISO 26623-1) - 150mm Gauge - Eroglu
EP8.43.32.150.R
EPS (ISO 26623-1) - Capto EPS 80 - 32mm - 150mm Gauge - RH
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

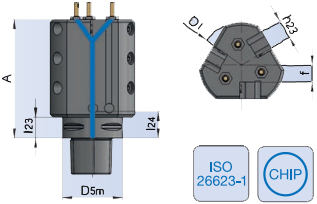

| Description | Capto EPS (ISO 26623-1) |
| EPS | EPS 80 |
| h23 | 32mm |
| A (Gauge) | 150mm |
| D1 | 120mm |
| D5m | 80mm |
| f | 20mm |
| l23 | 30mm |
| l24 | 36mm |
EP8.43.32.150.R
CAPTO EPS 80 - 32MM TRIPLEX AXIAL TOOLHOLDER RIGHT HAND EPS (ISO 26623-1) - 150MM GAUGE - EROGLU
