Capto EPS 63 - 20mm 45° Toolholder EPS Right Hand (ISO 26623-1) - 99mm Gauge - Eroglu
EP6.45.20.99.R
EPS (ISO 26623-1) - Capto EPS 63 - 20mm - 99mm Gauge - RH
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

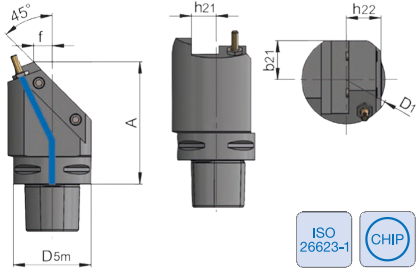

| Description | Capto EPS (ISO 26623-1) |
| EPS | EPS 63 |
| h21 | 20mm |
| A (Gauge) | 99mm |
| D1 | 72mm |
| D5m | 63mm |
| b21 | 31.5mm |
| h21 | 28mm |
| f | 15mm |
EP6.45.20.99.R
CAPTO EPS 63 - 20MM 45° TOOLHOLDER EPS RIGHT HAND (ISO 26623-1) - 99MM GAUGE - EROGLU
