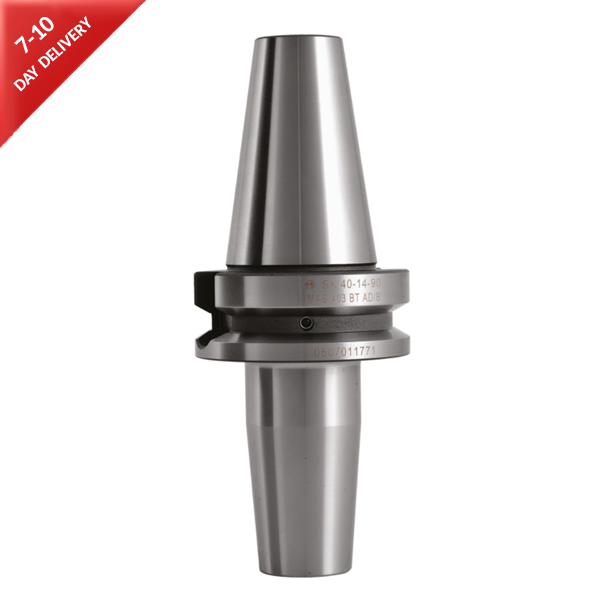

BT MAS 403 BT30 - 3mm Shrink Chuck ER-Plus Dual Contact/Face & Taper - 80mm Gauge (AD) - Eroglu
305.25.03.80.ERP
BT MAS 403 - BT30 - AD - 3mm - ER-PLUS - 80mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

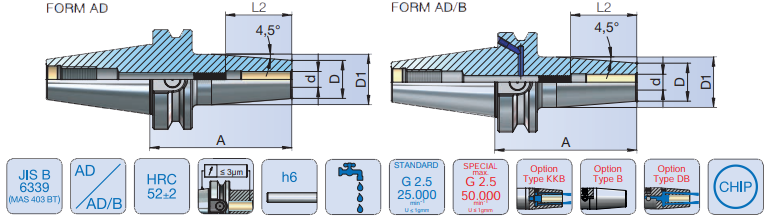

| Description | BT30 ERP |
| Form | AD |
| d | 3mm |
| A (Gauge) | 80mm |
| D | 10mm |
| D1 | 16mm |
| L2 | 14mm |
