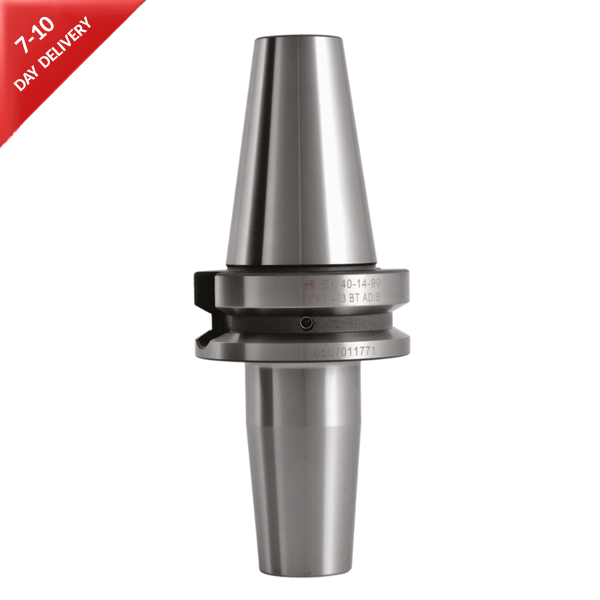

BT MAS 403 BT30 - 12mm Shrink Chuck ER-Plus Dual Contact/Face & Taper - 80mm Gauge (AD) - Eroglu
305.25.12.80.ERP
BT MAS 403 - BT30 - AD - 12mm - ER-PLUS - 80mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

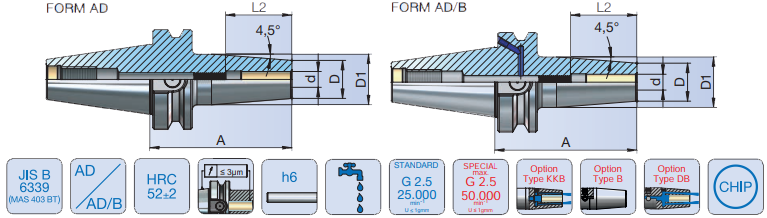

| Description | BT30 ERP |
| Form | AD |
| d | 12mm |
| A (Gauge) | 80mm |
| D | 24mm |
| D1 | 32mm |
| L2 | 47mm |
