BT MAS 403 BT50 - 40mm Shell Mill Holder ER-Plus Dual Contact/Face & Taper - 100mm Gauge (AD/B) - Eroglu
506.11.40.100.ERP
BT MAS 403 - BT50 - AD/B - 40mm - ER-PLUS - 100mm Gauge

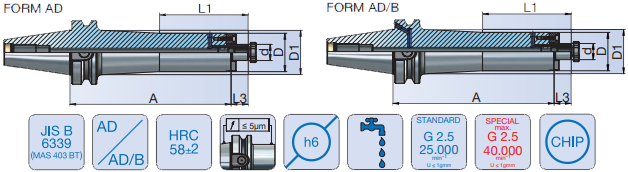

The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.
| Description | BT50 ERP |
| Form | AD/B |
| d | 40mm |
| A (Gauge) | 100mm |
| D | 88mm |
| L3 | 27mm |
