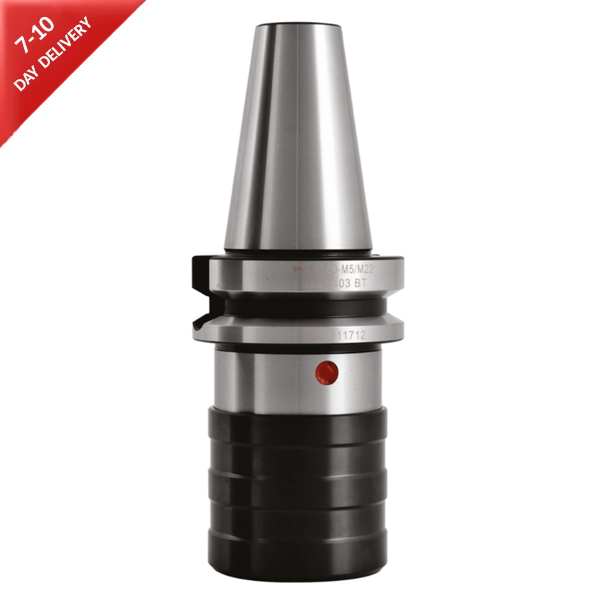

BT MAS 403 BT40 - 31mm (M5-M24) NC-Drill chuck for right and left rotation ER-Plus Dual Contact/Face & Taper - 93mm Gauge (A) - Eroglu
405.16.20.93.ERP
BT MAS 403 - BT40 - A - M5-M24 - 31mm - ER-PLUS - 93mm Gauge

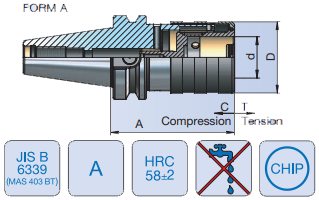

The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.
| Description | BT40 ERP |
| Form | A |
| Capacity | M5-M24 |
| d | 31mm |
| A (Gauge) | 93mm |
| D | 53.5mm |
| C | 12mm |
| T | 12mm |
