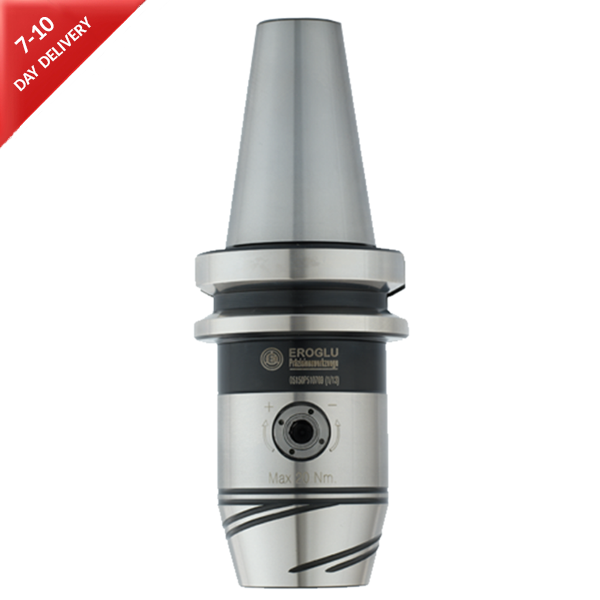

BT MAS 403 BT40 - 1.0-13mm NC-Drill chuck for right and left rotation ER-Plus Dual Contact/Face & Taper - 98mm Gauge (AD/B) - Eroglu
406.15.13.98.IK.ERP
BT MAS 403 - BT40 - AD/B - 1.0-13mm - ER-PLUS - 98mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

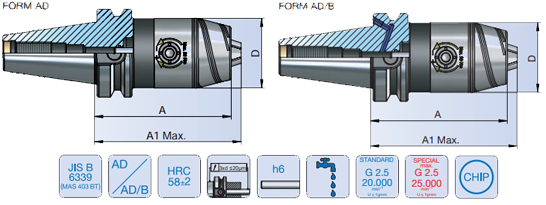

| Description | BT40 ERP |
| Form | AD/B |
| Capacity | 1.0-13mm |
| A (Gauge) | 98mm |
| D | 50mm |
| A1 Max | 116mm |
