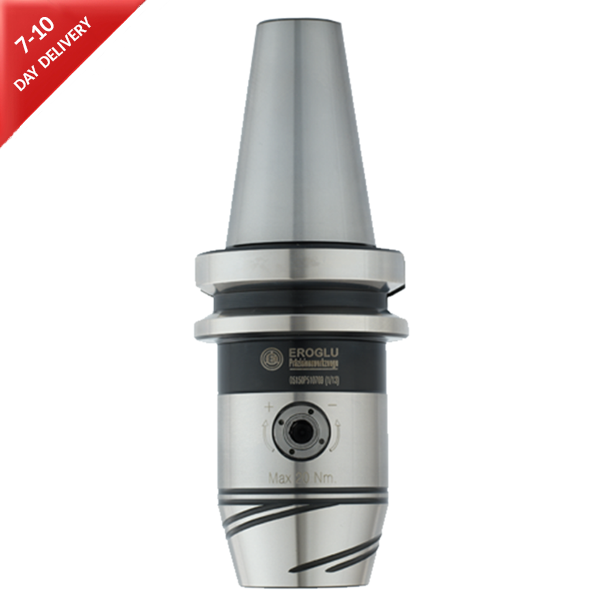

BT MAS 403 BT30 - 0.5-8mm NC-Drill chuck for right and left rotation ER-Plus Dual Contact/Face & Taper - 73mm Gauge (AD) - Eroglu
305.15.08.73.IK.ERP
BT MAS 403 - BT30 - AD - 0.5-8mm - ER-PLUS - 73mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

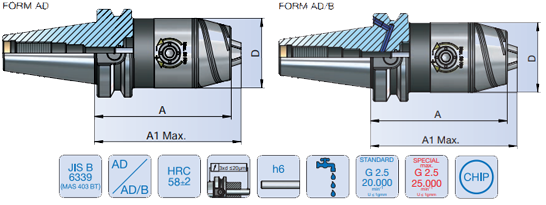

| Description | BT30 ERP |
| Form | AD |
| Capacity | 0.5-8mm |
| A (Gauge) | 73mm |
| D | 36mm |
| A1 Max | 76mm |
