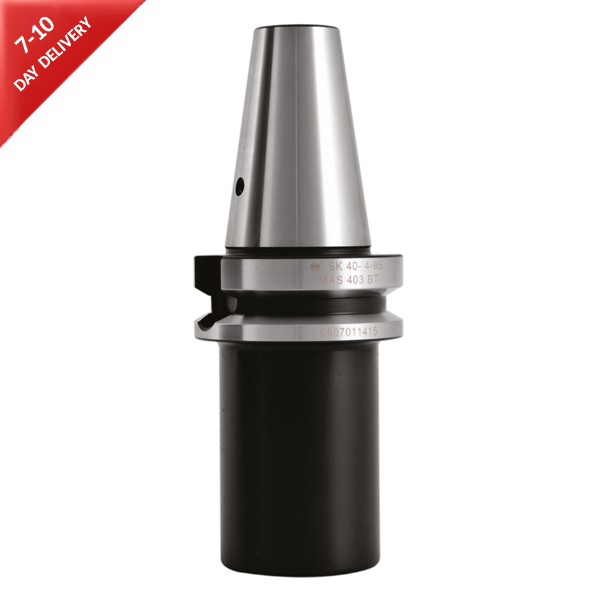

BT MAS 403 BT40 - MT2 Morse Taper Adapter with Drawbar Thread ER-Plus Dual Contact/Face & Taper - 50mm Gauge (AD) - Eroglu
405.08.02.50.ERP
BT MAS 403 - BT40 - AD - MT2 - ER-PLUS - 50mm Gauge

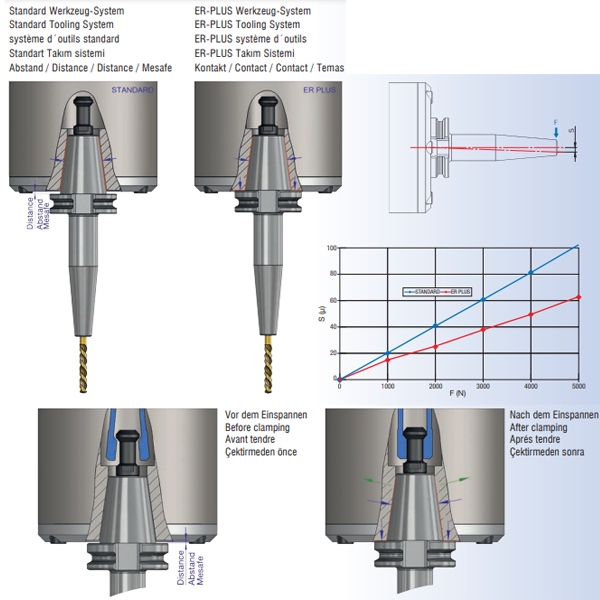

The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

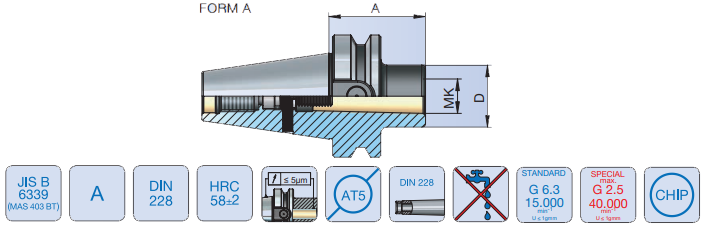

| Description | BT40 ERP |
| Form | AD |
| Capacity (MK) | MT2 |
| A (Gauge) | 50mm |
| D | 32mm |
