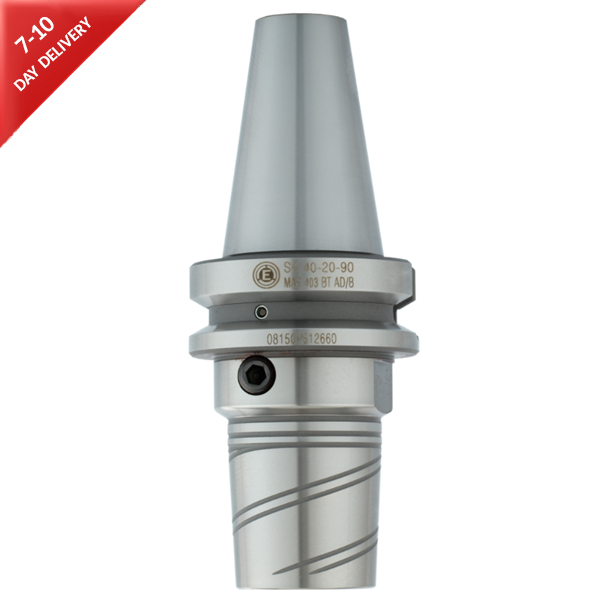

BT MAS 403 BT50 - 25mm Hydraulic Expansion Chuck ER-Plus Dual Contact/Face & Taper - 110mm Gauge (AD/B) - Eroglu
506.65.25.110.ERP
BT MAS 403 - BT50 - AD/B - 25mm - ER-PLUS - 110mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

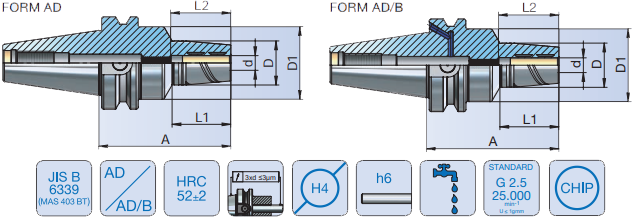

| Description | BT50 ERP |
| Form | AD/B |
| d | 25mm |
| A (Gauge) | 110mm |
| D | 55mm |
| D1 | 60mm |
| L1 | 55mm |
| L2 | 57mm |
