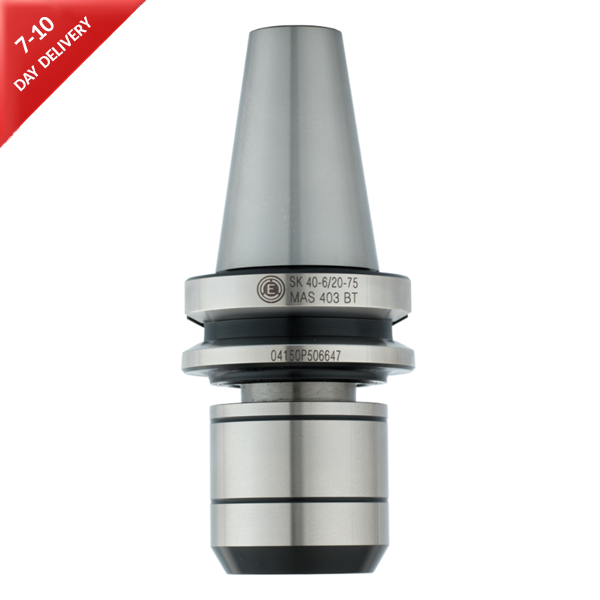

BT MAS 403 BT40 - EKS32 Precision Milling Chuck ER-Plus Dual Contact/Face & Taper - 130mm Gauge (AD/B) - Eroglu
406.03.32.130.N.ERP
BT MAS 403 - BT40 - AD/B - EKS32 - ER-PLUS - 130mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

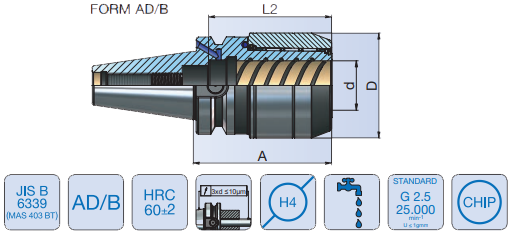

| Description | BT40 ERP |
| Form | AD/B |
| Capacity | EKS32 (6-32) |
| d | 32mm |
| A (Gauge) | 130mm |
| D | 68mm |
| L2 | 80mm |
