BT MAS 403 BT50 - ER32 Collet Chuck ER-Plus Dual Contact/Face & Taper - 160mm Gauge (AD/B) - Eroglu
506.02.20.160.ERP

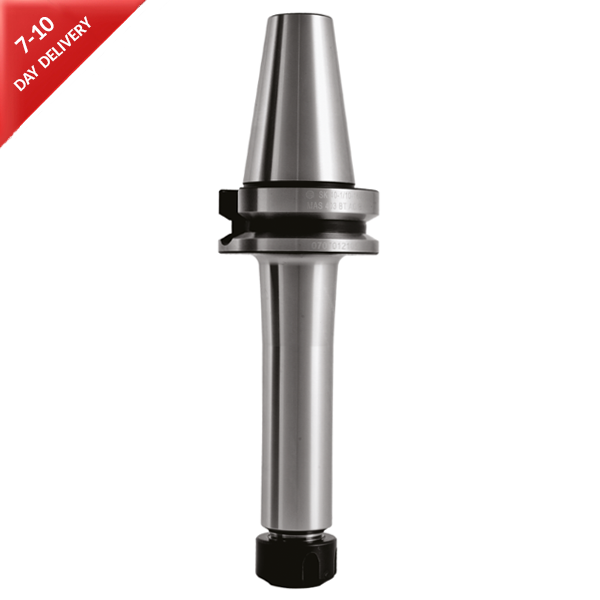

BT MAS 403 - BT50 - AD/B - ER32 - ER-PLUS - 160mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

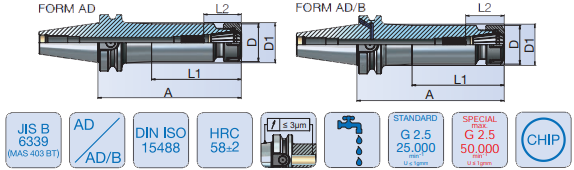

| Description | BT50 ERP |
| Form | AD/B |
| Capacity | ER32 (2-20) |
| A (Gauge) | 160mm |
| D | 50mm |
| D1 | 55mm |
| L1 | 74mm |
| L2 | 48mm |
