BT MAS 403 BT50 - ER25 Collet Chuck ER-Plus Dual Contact/Face & Taper - 160mm Gauge (AD/B) - Eroglu
506.02.16.160.ERP

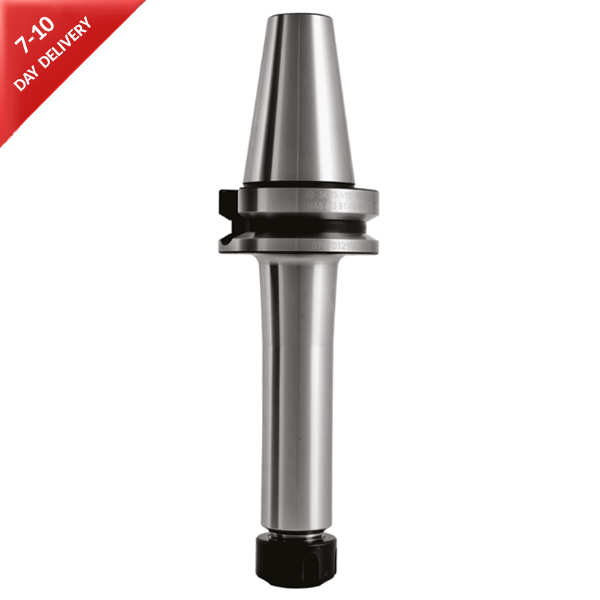

BT MAS 403 - BT50 - AD/B - ER25 - ER-PLUS - 160mm Gauge

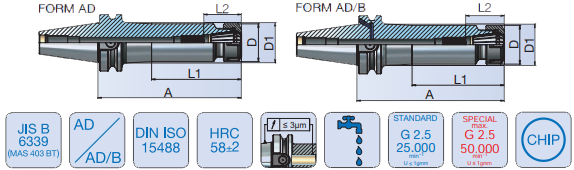

The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.
| Description | BT50 ERP |
| Form | AD/B |
| Capacity | ER25 (2-16) |
| A (Gauge) | 160mm |
| D | 42mm |
| D1 | 47mm |
| L1 | 73mm |
| L2 | 42mm |
