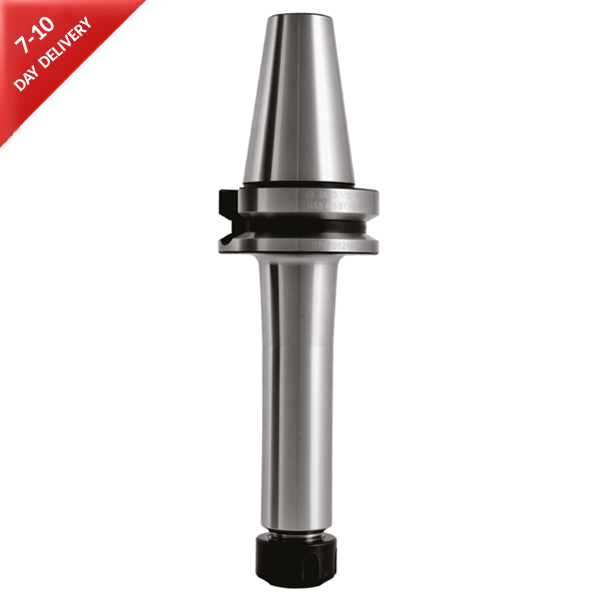

BT MAS 403 BT50 - ER16 Collet Chuck ER-Plus Dual Contact/Face & Taper - 100mm Gauge (AD/B) - Eroglu
506.02.10.100.ERP
BT MAS 403 - BT50 - AD/B - ER16 - ER-PLUS - 100mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

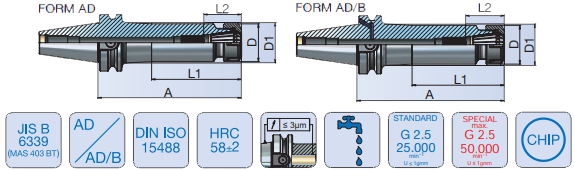

| Description | BT50 ERP |
| Form | AD/B |
| Capacity | ER16 (1-10) |
| A (Gauge) | 100mm |
| D | 28mm |
| L2 | 32mm |
