BT MAS 403 BT40 - 8mm End Mill Holder with Coolant Channel Weldon ER-Plus Dual Contact/Face & Taper - 100mm Gauge (AD/B) - Eroglu
406.04.08.100.K.ERP
BT MAS 403 - BT40 - AD/B - 8mm - ER-PLUS - 100mm Gauge
The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.

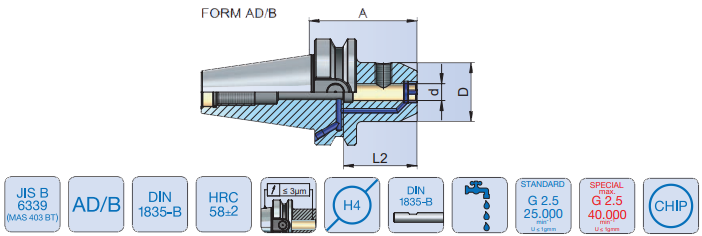

| Description | BT40 ERP |
| Form | AD/B |
| d | 8mm |
| A (Gauge) | 100mm |
| D | 28mm |
| L2 | 40mm |
