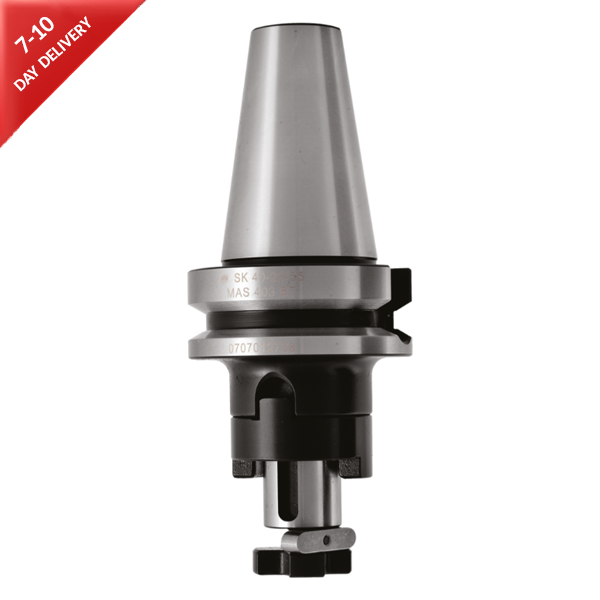

BT MAS 403 BT30 - 22mm Combi Shell Mill Holder ER-Plus Dual Contact/Face & Taper - 47mm Gauge (AD) - Eroglu
305.10.22.47.ERP
BT MAS 403 - BT30 - AD - 22mm - ER-PLUS - 47mm Gauge

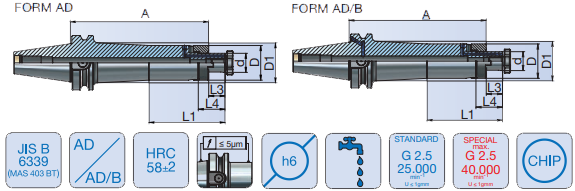

The differences between standard tooling to ER-Plus system is a dual contact face by shank and also flanged face. This allows a higher radial rigidity. See 3rd image for ER-Plus explanation in more detail.
This item is on a 7-10 day delivery, please contact us for more info on lead time/stock.
| Description | BT30 ERP |
| Form | AD |
| d | 22mm |
| A (Gauge) | 47mm |
| D | 40mm |
| L3 | 19mm |
| L4 | 31mm |
