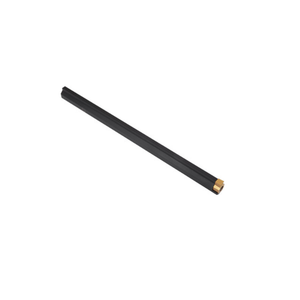

PHZ 90 1104-06 Broaching Tool Holder For 0604-30 Inserts - 8.5mm Shank 3mm Cutting Width - Dormer Pramet
PHZ 90 1104-06
Dormer Pramet Broaching Tool For HZ90 0604-30 Single-Sided Inserts.
CNC Broach for carrying a single ended insert, size HZ90 0604-30 for longitudinal slotting 3mm keyways in bore diameters greater than 9.5mm
| Shank height (H) |
11.3mm |
| Functional height (HF) |
9.0mm |
| Shank width (B) |
8.5mm |
| OAL (LF) |
160mm |
| Usable Length (LU) |
35mm |
| Cutting width (CW) |
3.0mm |
|
Minimum bore diameter (DMIN) |
9.5mm |
| Cutting depth maximum (CDX) |
1.6mm |
PHZ 90 1104-06
