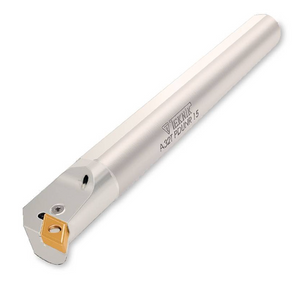

S32T PDUNR 15 Boring Bar For DNMG 1506 Inserts - Teknik
P302
S32T PDUNR 15
For DNMG 1506 Inserts - P302
| Dmin | 40mm |
| d | 32mm |
|
L |
300mm |
| L1 | 55mm |
| f | 22mm |
| h | 30mm |
| Clamp Screw | TH822 M8 |
| Shim | TA014-1 |
| Lock Pin | TS-4 |
| Lever | TL4B |
| Allen Key | 3 Allen |
S32T PDUNR 15
