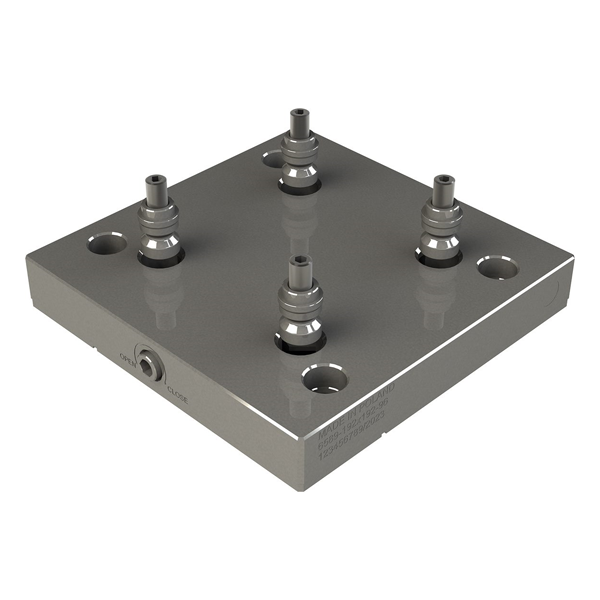

Bison Quick-Fix Mounting Base 192mm x 192mm - 96mm - 6589 Series

Bison Quick-Fix Mounting Base 192mm x 192mm - 96mm - 6589 Series

Zero Point Clamping System

Standard location of mounting pins, custom setups available on request.

Features:

•  High fixing repeatability, mounting holes made in ±0,005 mm tolerance.

• The height of the mounting plate made within 0,01mm tolerance.

• Low-profile mounting plate (30 mm height).

• Quick-action mounting, using only one screw.

• Suitable for mounting vices, other fixtures or direct mounting of workpieces with pre-made mounting holes, matching the location of the mounting pins.

• Pre-made base mounting holes for M10 bolts, available arrangements: 82x82 mm or 120x150mm. Other setups of mounting holes or sockets for clamps available on request.

The Bison quick-fix system is equivalent to the following systems:

• LANG Quick Point series

• Gerardi QUICK CHANGE TABLE FOR COMPACT GRIP VISES Art. 660

• Piranha Clamp Zero Point

• HWR SolidPoint

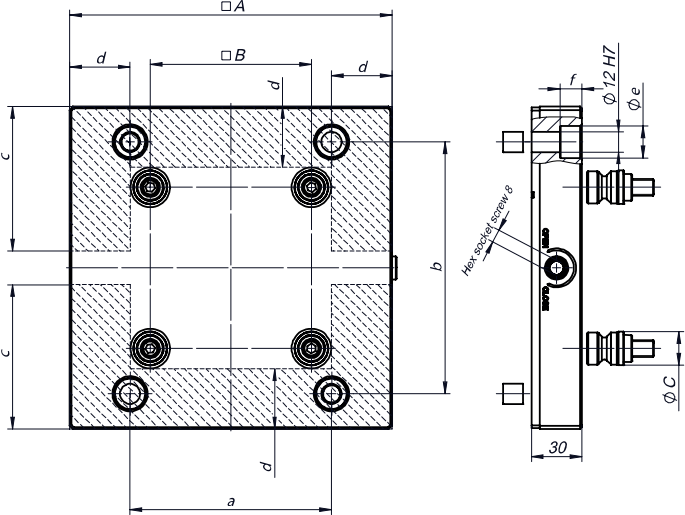

Machinable area (shown below) for mounting holes or sockets for clamps - made on customer’s request.
