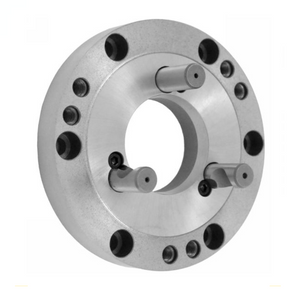

Bison Fully Finished Adapter Plates 200mm (D Type Mount) - 8240-200-4-X
8240-200-4-XBison Fully Finished Adapter Plates (D Type Mount)
Features:
- For use with plain back self centring scroll chucks
- Fully finished D mount adapter plate
- DIN55029
D Type Mount:
| Taper Size | A | B | Pcs/Set |
| 4 | 15.9 |
82.6 |
3 |
| D Mount | Chuck Size | A | B | B1 | B2 | D |
F |
G (h6) |
| D1-4 | 200mm | 200 |
27.0 |
3.5 |
32.8 |
82.6 |
60.0 |
160 |
| K | M |
N |
P |
S |
kg |
| 176.0 |
6x16.5 |
6x10.5 |
6xM10 |
- |
4.9 |
