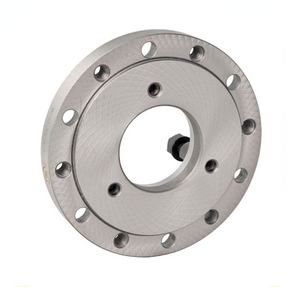

Bison Fully Finished Adapter Plates 315mm (C Type Mount) - 8230-315-6-X
8230-315-6-XBison Fully Finished Adapter Plates (C Type Mount)
Features:
- For use with plain back self centring scroll chucks
- Fully finished C mount adapter plate
- DIN55027
C Type Mount:
| Taper Size | A | B | Pcs/Set |
| 6 | M12x50 | 133.4 |
4 |
| C Mount | Chuck Size | A | B | B1 | B2 | D |
F |
G (h6) |
| C-6 | 315mm | 315 |
33 |
4.5 |
50 |
133.4 |
103.0 |
260 |
| K | M |
N |
P |
S |
kg |
| 286.0 |
6x25.0 |
6x17.0 |
6xM16 |
- |
15.1 |
