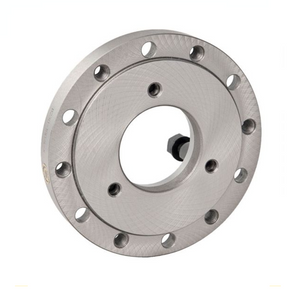

Bison Fully Finished Adapter Plates 315mm (C Type Mount) - 8230-315-11-X
8230-315-11-XBison Fully Finished Adapter Plates (C Type Mount)
Features:
- For use with plain back self centring scroll chucks
- Fully finished C mount adapter plate
- DIN55027
C Type Mount:
| Taper Size | A | B | Pcs/Set |
| 11 | M20x75 | 235 |
6 |
| C Mount | Chuck Size | A | B | B1 | B2 | D |
F |
G (h6) |
| C-11 | 315mm | 315 |
33 |
4.5 |
75 |
235.0 |
192.8 |
260 |
| K | M |
N |
P |
S |
kg |
| 286.0 |
6x25.0 |
6x17.0 |
6xM16 |
- |
12.2 |
