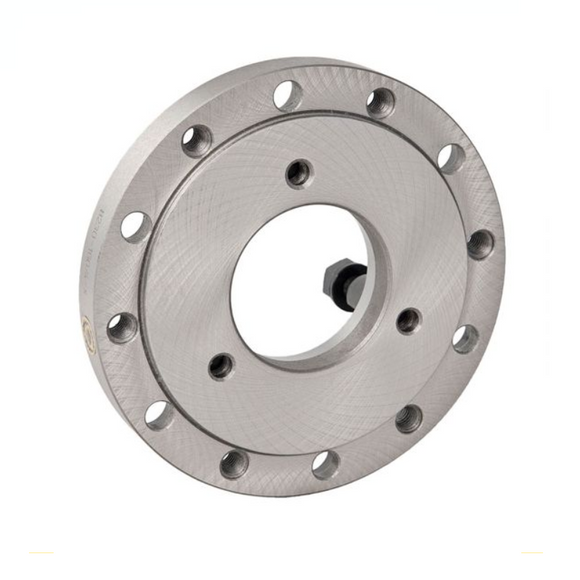

Bison Fully Finished Adapter Plates 160mm (C Type Mount) - 8230-160-4-X
8230-160-4-XBison Fully Finished Adapter Plates (C Type Mount)
Features:
- For use with plain back self centring scroll chucks
- Fully finished C mount adapter plate
- DIN55027
C Type Mount:
| Taper Size | A | B | Pcs/Set |
| 4 | M10x39 | 85 |
3 |
| C Mount | Chuck Size | A | B | B1 | B2 | D |
F |
G (h6) |
| C-4 | 160mm | 160 |
22 |
3.5 |
39 |
85.0 |
60.9 |
125 |
| K | M |
N |
P |
S |
kg |
| 140.0 |
6x16.5 |
6x10.5 |
6xM10 |
- |
2.5 |
