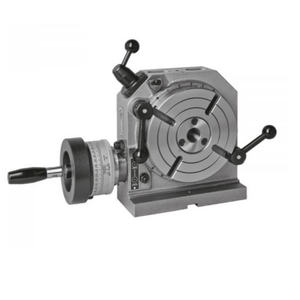

Bison Rotary Table 320mm - 5859 Series

Bison Rotary Table - 5859 Series

Features:

• Due to the three dividing plates, division into the required number of sections is obtained with an accuracy of 1’.

• Dividing means of graduated drum with 1’30”.

• Parallelism of clamping surface to base 0,02mm.

• Flatness of clamping surface 0,02mm.

• True run-out of tapered centre bore 0,01mm.

• Squareness of clamping surface to angle face 0,02mm.

• Centring Morse taper sleeves are hardened and ground, extending machine life.

• Possibility of worm wear compensation and worm disconnection from outside of the body.

• Depending on the size gear ratio is 1:60, 1:90, 1:120.

• High stiffness.

• Three dividing plates with clamping bolts.

• Slot nuts.

• Table lever.
