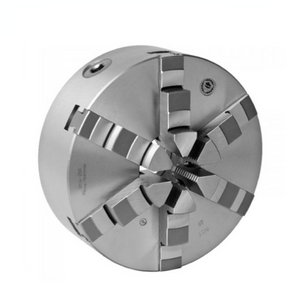

6-Jaw 250mm Lathe Chuck - Bison 3804-250
3804-250Bison 6 Jaw Lathe Chuck
Supplied with one set of hard outside-inside solid jaws, one set of hard outside solid jaws and one wrench.
Features:
- Hardened and ground working surfaces prolong life while ensuring continuous accuracy and repeatability.
- Excellent Value.
- Self-centring.
- Cast iron body.
- Ideal for clamping 3-sided (triangular), 6-sided (hexagonal), and cylindrical jobs.
- Reduced pressure per jaw means less damage to workpiece - perfect for delicate/thin walled jobs.
- Supplied with hard outside-inside solid jaws, hard outside solid jaws and wrench.
- Balanced scroll plate allows higher rotation speeds without excess vibration.
- Mounted on the machine tool spindle from the back of the chuck by using an adaptor plate.
|
A
|
B
|
B1
|
C
|
D H7
|
E
|
F
|
G
|
J
|
L
|
kg
|
|
250
|
85
|
88.8
|
5
|
200
|
76
|
224
|
6xM12
|
34
|
53
|
29.0
|
