3-Jaw 500mm Lathe Chuck - Bison 3505-500 (Steel) - Precision Engineering Tools EW Equipment

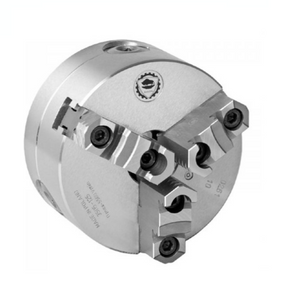

3-Jaw 500mm Lathe Chuck - Bison 3505-500 (Steel)

3505-500

Bison

  • £8,686.44


Bison 3 Jaw Lathe Chuck - Steel

Supplied with one set of hard top jaws, one set of hard master jaws and one wrench.

Steel body material provides higher rigidity and wear resistance, enabling the chuck to withstand higher machining forces.

Features:

  • Hardened and ground working surfaces prolong life while ensuring continuous accuracy and repeatability.
  • Excellent value.
  • Self-centring.
  • Steel body.
  • Ideal for clamping 3-sided (triangular) and 6-sided (hexagonal) jobs.
  • Supplied with hard top jaws, hard master jaws and wrench.
  • Balanced scroll plate allows higher rotation speeds without excess vibration.
  • Mounted on the machine tool spindle from the back of the chuck by using an adapter plate.
  • Chucks with diameters 500 mm and above are equipped with additional T-slots.
    A
    B
    B1
    C
    D H7
    E
    F
    G
    J
    L
    kg
    500
    119.0
    129.8
    5
    420
    190.0
    458.0
    6xM16
    60
    79.0
    145.0

    3505-500 3-JAW 500MM LATHE CHUCK - BISON 3505-500 (STEEL)
