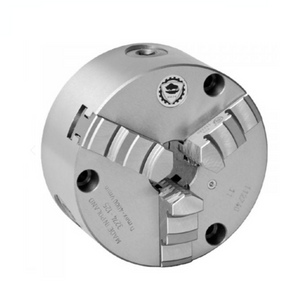

3-Jaw 500mm Lathe Chuck - Bison 3274-500
3274-500Bison 3 Jaw Lathe Chuck
Supplied with one set of hard inside-outside solid jaws, one set of hard outside solid jaws and one wrench.
Bison flexible front-mount scroll chucks feature mounting holes on the front face in addition to a recessed back for rear mounting. Front mount chucks are ideal for mounting directly onto to milling machine tables.
Features:
- Ground working surfaces ensure sustained accuracy and repeatability.
- Self-centring.
- Cast Iron body.
- Chucks with diameters 1000 mm and above are equipped with additional T-slots .
- Ideal for clamping 3-sided (triangular) or 6-sided (hexagonal) jobs.
- Supplied with outside/inside-outside jaws and wrench.
- Flexible mounting system: mounting from the back or front of the chuck by using an adapter plate.
- Separate Camlock or semi-finished adapter plates are available.
|
A
|
B
|
B1
|
C
|
D H7
|
E
|
F
|
G/P
|
J
|
L
|
kg
|
|
500
|
120.0
|
130.8
|
5
|
420
|
190.0
|
458
|
6xM16
|
60
|
79.0
|
145.0
|
