2IR16UNVTX Internal American UN RH Threading Insert VTX Grade - Vargus
021-50402
American UN - 2IR16UNVTX - 11IR16UNVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on many more grades that are available.
*The price of this product is the price per insert (1x pack)*

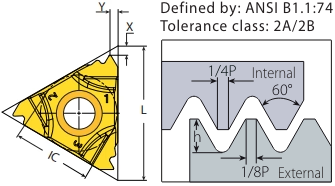

| IC | 1/4" (11IR) |
|
L |
11mm |
| Pitch (TPI) | 16 |
| h min | 0.92mm |
| X | 0.9mm |
| Y | 1.1mm |
| Tolerance | 2B |
| Anvil | - |
| Toolholder | NVR..-2 |
021-50402
