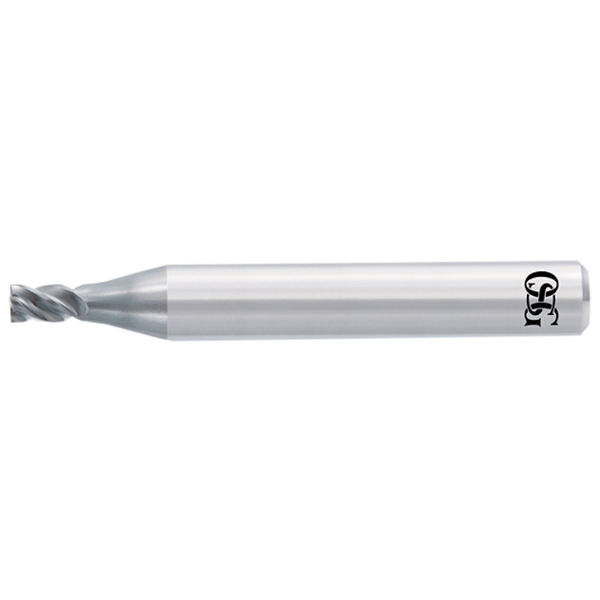

9.0mm 4 Flute Solid Carbide Short End Mill DUARISE Coated - OSG
OSG-8556490
AE-VMSS
Product features and benefits:
- First choice in quality and performance
- Carbide end mill with DUARISE coating
- Wide variety in applications and work materials
- 4 flutes, variable helix and unequal spacing
- Stub length of cut

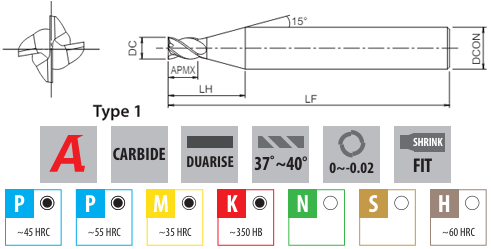

| Diameter (DC) | 9.0mm |
| Overall Length (LF) | 70mm |
| Length Of Cut (APMX) | 13.5mm |
| Neck Length (LH) | 17.7mm |
| Shank Diameter (DCON) | 10mm |
| Type | 1 |
OSG-8556490
9.0MM 4 FLUTE SOLID CARBIDE SHORT END MILL DUARISE COATED - OSG
