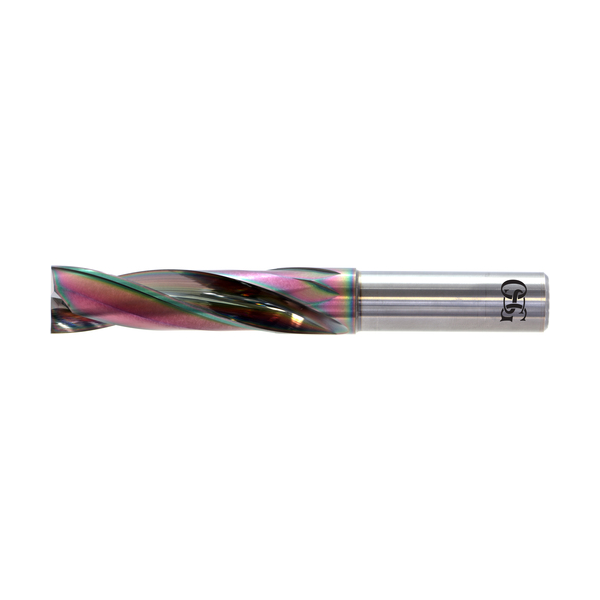

9.9mm Flat Bottom Drill 2 Flute Solid Carbide EgiAs Coated 2xD - OSG

OSG-3330990

OSG

  • £107.26


ADF-2D - 9.9mm

    Machining a flat hole traditionally required the use of an end mill and a drill. The A Brand® ADF enables one-step drilling to simplify machining time and tool management. Suitable for a wide variety of drilling applications including inclined surfaces, curved surfaces, counterboring, eccentric holes, thin plates, etc.

    Product features and benefits:

    • First Choice in quality and performance
    • Carbide drill with EgiAs Coating which supresses friction with the wear resistance layer and prevents breakage.
    • Wide chip room Smooth chip evacuation.
    • Unique end cut geometry Reduces cutting force to enable stable machining.

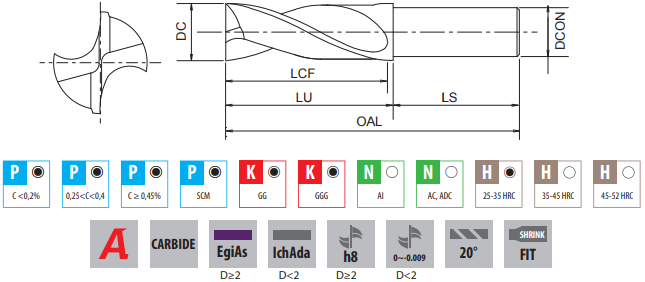

    Diameter (DC) 9.9mm
    Flute Length (LU) 44.0mm
    Neck Length (LCF) 42.0mm
    Overall Length (OAL) 85mm
    Shank Diameter (DCON) 8.0mm
    Shank Tolerance h6
    OSG-3330990 9.9MM FLAT BOTTOM DRILL 2 FLUTE SOLID CARBIDE EGIAS COATED 2XD - OSG
