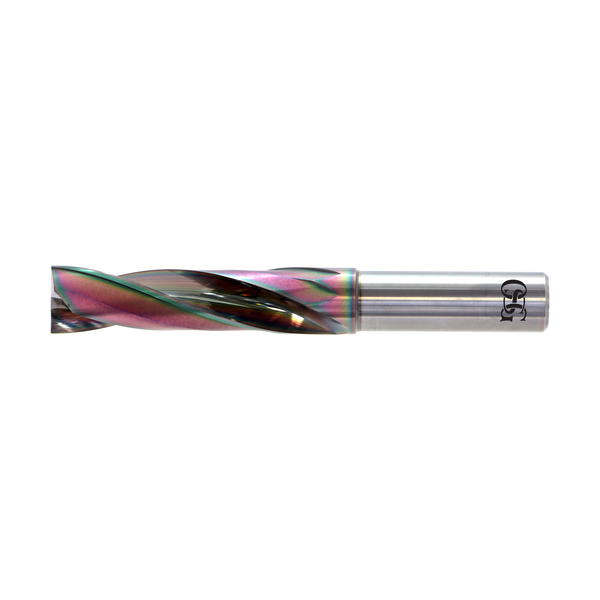

1.3mm Flat Bottom Drill 2 Flute Solid Carbide EgiAs Coated 2xD - OSG

OSG-3330130

OSG

  • £56.38


ADF-2D - 1.3mm

    Machining a flat hole traditionally required the use of an end mill and a drill. The A Brand® ADF enables one-step drilling to simplify machining time and tool management. Suitable for a wide variety of drilling applications including inclined surfaces, curved surfaces, counterboring, eccentric holes, thin plates, etc.

    Product features and benefits:

    • First Choice in quality and performance
    • Carbide drill with EgiAs Coating which supresses friction with the wear resistance layer and prevents breakage.
    • Wide chip room Smooth chip evacuation.
    • Unique end cut geometry Reduces cutting force to enable stable machining.

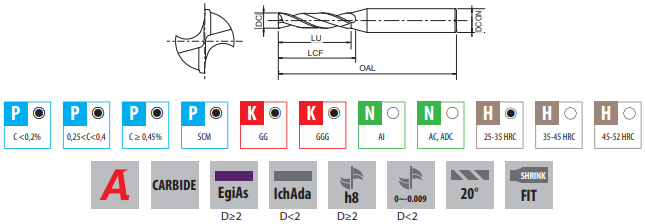

    Diameter (DC) 1.3mm
    Flute Length (LU) 5.2mm
    Neck Length (LCF) 5.5mm
    Overall Length (OAL) 45mm
    Shank Diameter (DCON) 3.0mm
    Shank Tolerance h6
    OSG-3330130 1.3MM FLAT BOTTOM DRILL 2 FLUTE SOLID CARBIDE EGIAS COATED 2XD - OSG
