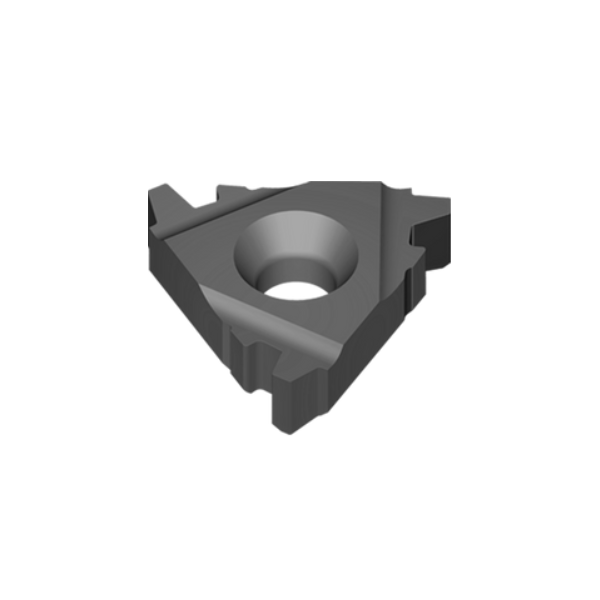

4ER6ACMEVTX External ACME RH Threading Insert VTX Grade - Vargus
021-59361
ACME - 4ER6ACMEVTX - 22ER6ACMEVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*

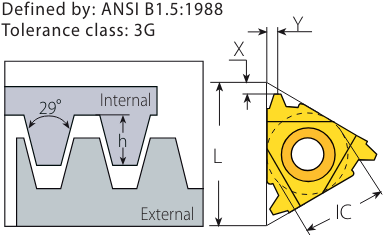

| IC | 1/2" (22ER) |
|
L |
22mm |
| Pitch (TPI) | 6 |
| h min | 2.37mm |
| X | 1.8mm |
| Y | 2.1mm |
| Tolerance | 3G |
| Anvil | YE4 |
| Toolholder | AL..-4 |
021-59361
