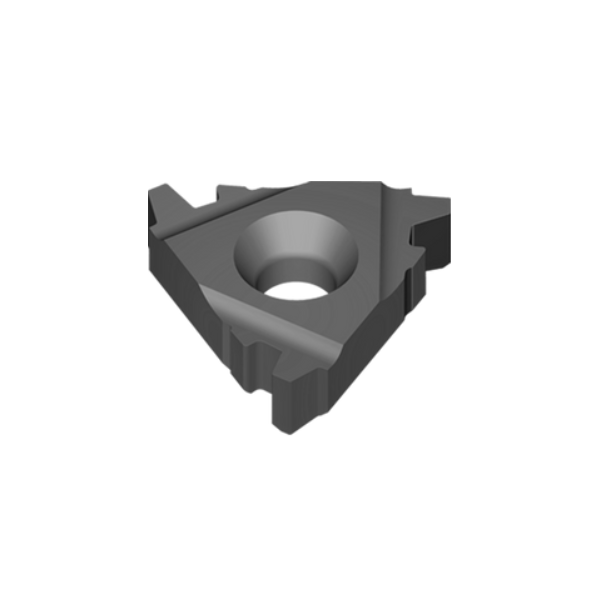

3ER7ACMEVTX External ACME RH Threading Insert VTX Grade - Vargus
021-06671
ACME - 3ER7ACMEVTX - 16ER7ACMEVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*

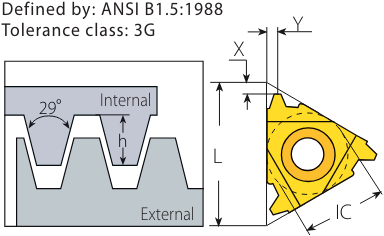

| IC | 3/8" (16ER) |
|
L |
16mm |
| Pitch (TPI) | 7 |
| h min | 2.08mm |
| X | 1.9mm |
| Y | 2.2mm |
| Tolerance | 3G |
| Anvil | YE3 |
| Toolholder | AL..-3 |
021-06671
