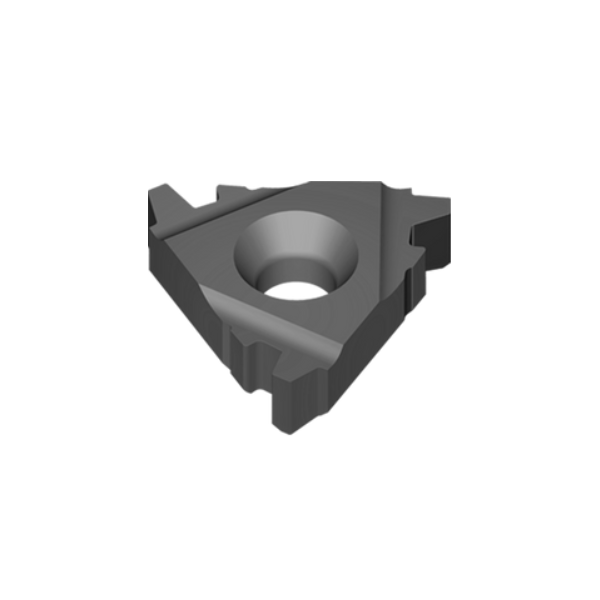

3ER14ACMEVTX External ACME RH Threading Insert VTX Grade - Vargus
021-50196
ACME - 3ER14ACMEVTX - 16ER14ACMEVTX
VTX Grade: General purpose grade with tough submicron substrate. Provides good fracture toughness in non-rigid cutting conditions. TiAIN coated.
Please contact us for more info on more grades that are available.
*The price of this product is the price per insert (1x pack)*

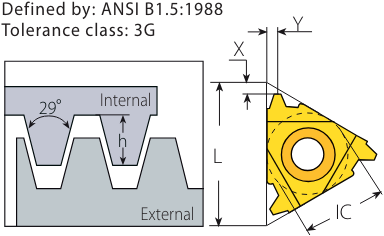

| IC | 3/8" (16ER) |
|
L |
16mm |
| Pitch (TPI) | 14 |
| h min | 1.03mm |
| X | 1.0mm |
| Y | 1.2mm |
| Tolerance | 3G |
| Anvil | YE3 |
| Toolholder | AL..-3 |
021-50196
