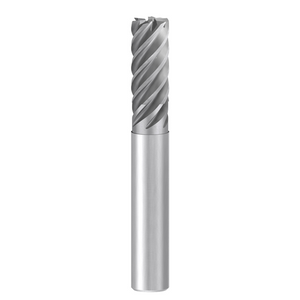

8mm 6 Flute Cut & Form Expert Carbide Long End Mill Uncoated for Finishing Aluminium - Emuge Franken
2507.008
2507 "Cut & Form" - DIN 6535 - h5
Cut & Form Expert carbide end mill, DIN 6527, in long design for manufacturing polished surfaces in aluminium and copper alloys.
Product features and benefits:
- Patented cutting geometry with three cutting edges and three pressure ridges produces a polished surface in a single operation (surface roughness N1-N3).
-
Significant reduction in manufacturing costs.
- High performance tool for finishing.
- Also suitable for trimming 2D contours.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.
| Cutting Diameter (d1) | 8mm |
| Shank Diameter (d2) | 8mm |
| Neck Diameter (d3) | 7.7mm |
| Cutting Length (l2) | 19mm |
| Neck Length (l3) | 25mm |
| Overall Length (l1) | 63mm |
| Bevelled Edge | 0.12mm |
| Shank/Cutting Tolerance |
h5 |
| Tool Interface Norm | DIN 6535 |
| Coating | Uncoated |
| Coolant Supply | Without Internal Cooling |
| Helix Angle | 40° |
