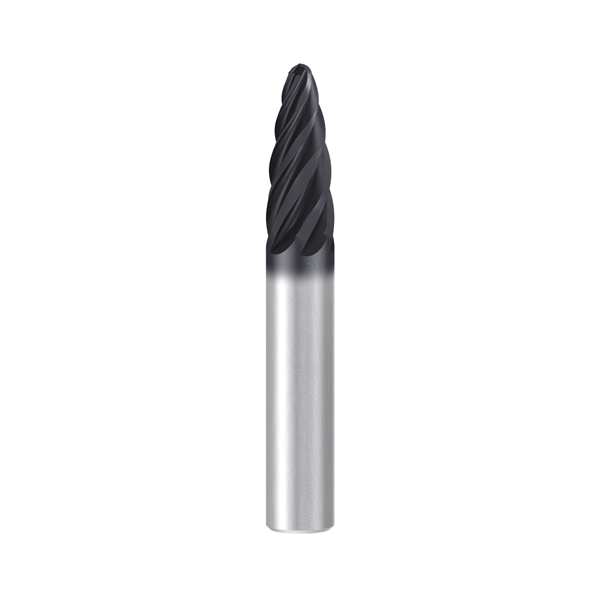

16mm x 3mm 6 Flute Circle Segment End Mill with Oval Form - VR Expert Emuge Franken
3539L.16075A
Expert carbide circle segment end mill in oval form for finishing applications in many materials, hard machining up to 60 HRC possible.
Product features and benefits:
- Special geometry allows larger line jumps with the same surface quality and time savings of up to 90% compared to a ball nose end mill.
- Low-vibration machining due to variable spacing.
- High form tolerance of ± 0.01 mm for highest precision.
- Especially suitable for high-strength materials.
- For almost all materials.
- Hard machining of up to 60 HRC.
- Suitable for HSC finishing.
- Not available on next day delivery, please contact us to check availability if urgent. Standard delivery is 2-3 business days.

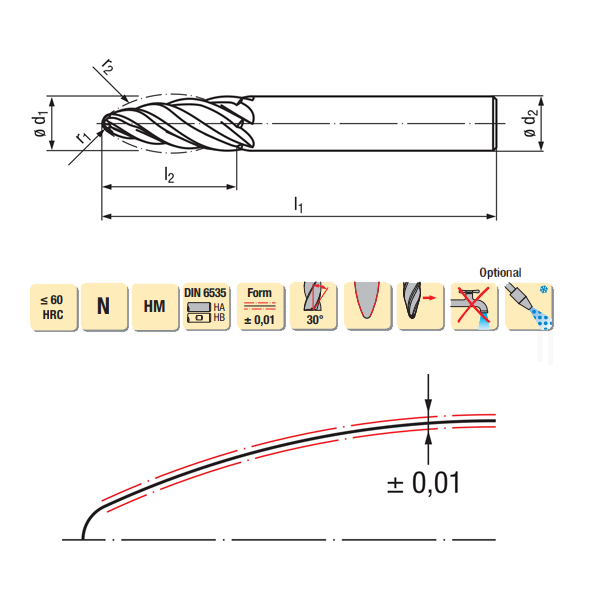

Cutting Diameter (Ød1) | 16mm |
Radius (r1) | 3mm |
Radius (r2) | 75mm |
Cutting Length (l2) | 31mm |
Overall Length (l1) | 92mm |
Shank Diameter (Ød2) | 16mm |
Shank Diameter Tolerance | h6 |
Flutes (Z) | 6 |
Tool Interface | Straight Shank |
Tool Interface Norm | DIN 6535 |
Coating | ALCR |
Internal Coolant Supply | Without Internal Cooling |
Form Tolerance | ±0.01mm |
Helix Angle | 30° |
