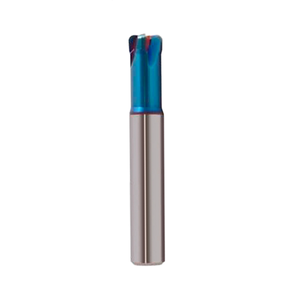

12.0mm x 3.0r Corner Radius High Feed Short End Mill 4 Flute - Europa Tool Pulsar Blue HRc70 1103501203
1103501203
High Feed Corner Radius Short length - 4 Flute.
- Excellent wear resistance at heavy feed rates on high hardened material.
- Designed with reduced clearance angles and short flutes for strength.
- High hardness and heat resistant coating for long life in dry applications.
- For materials up to HRc70
|
Dia DC |
Radius RE |
Shank Dia DMM |
Length Of Cut APMX |
Effective Length LU |
OAL |
Neck Dia DN |
|
12.0mm |
3.0mm |
12mm |
5mm |
25.0mm |
80 |
11.0mm |
