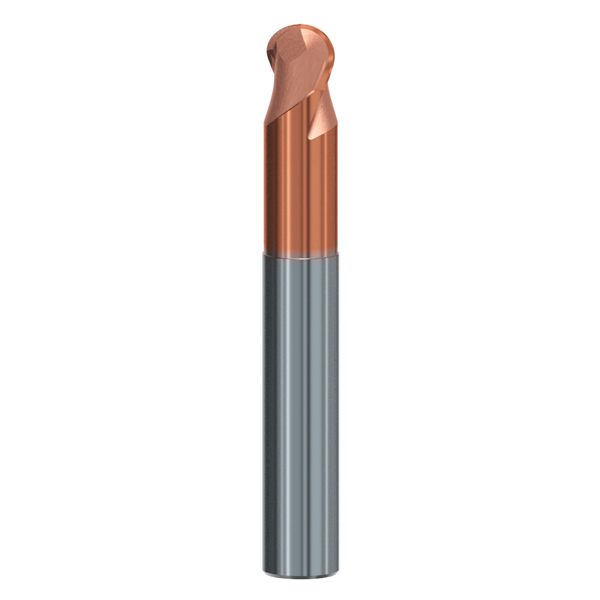

12.0mm 2 Flute Solid Carbide Ball Nose Top Cut End Mill (3820A) - Emuge Franken
3820A.012
12.0mm - DIN 6535 - 3820A
Carbide ball-nose cutter Top-Cut in short version (3xD) for universal roughing - and finishing applications in many materials.
Product Features and Benefits:
- Suitable for HSC finishing.
- Patented chisel edge
- TIALN coating for best possible wear protection and long tool life.

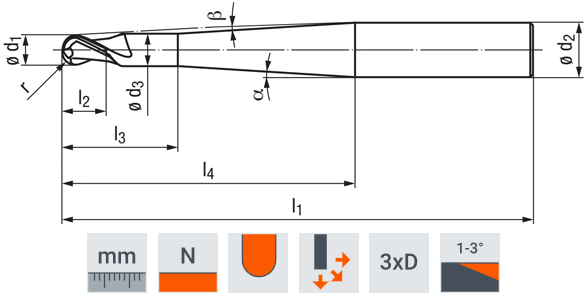

| Cutting Diameter (Ød1) | 12.0mm |
| Radius (r) | 6.0mm |
| Cutting Length (l2) | 10.0mm |
| Neck Length (l3) | 36.0mm |
| Length of Shank Connection (l4) | - |
| Overall Length (l1) | 83mm |
| Neck Diameter (Ød3) | 11.5mm |
| Shank Diameter (Ød2) | 12.0mm |
| Shank Tolerance | h5 |
| Neck Angle (α) | - |
| Neck Angle (β) | - |
| Helix Angle | 30° |
