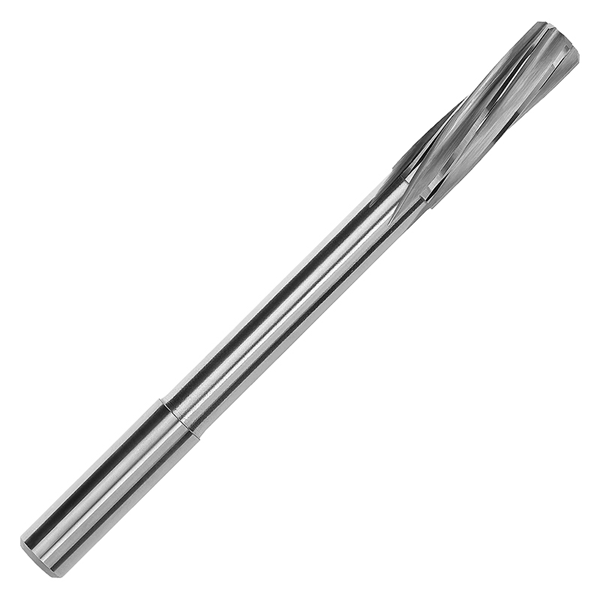

2.230mm Precision Carbide Straight Shank Reamer
TX-A02230DAM
2.230mm - SS - H4 Tolerance
Product Info:
- Intermediate precision carbide (K10) straight shank Reamer.
- Left hand spiral flute, right hand cutting, Similar to DIN 212 B
- 6 Flutes

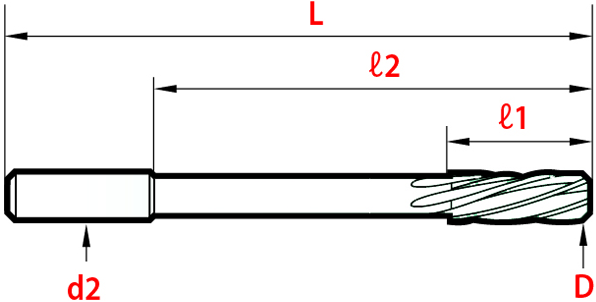

| Diameter (D) | 2.230mm |
| Shank Diameter (d2) | D |
| Flute Length (l1) | 12mm |
| Reach (l2) | 31mm |
| Overall Length (L) | 49mm |
