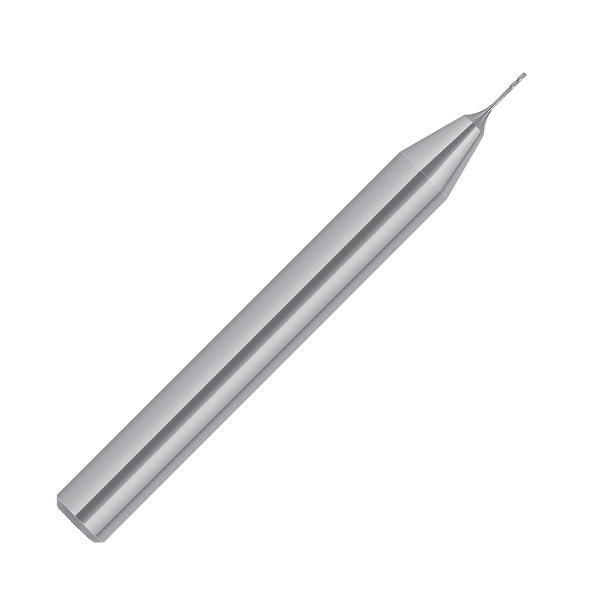

0.255mm Micro Precision Carbide Straight Shank Reamer
TX-A00255DAN
0.255mm - SS - ± 0.001mm Tolerance
Product Info:
- Intermediate precision carbide (K10) straight shank Reamer.
- Left hand spiral flute, right hand cutting, Similar to DIN 212 B
- 4 Flutes

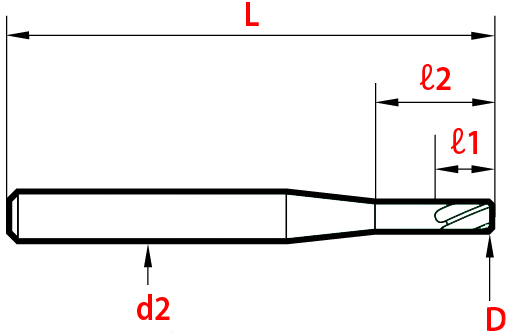

| Diameter (D) | 0.255mm |
| Shank Diameter (d2) | 3mm |
| Flute Length (l1) | 1.1mm |
| Reach (l2) | 2.5mm |
| Overall Length (L) | 39mm |
